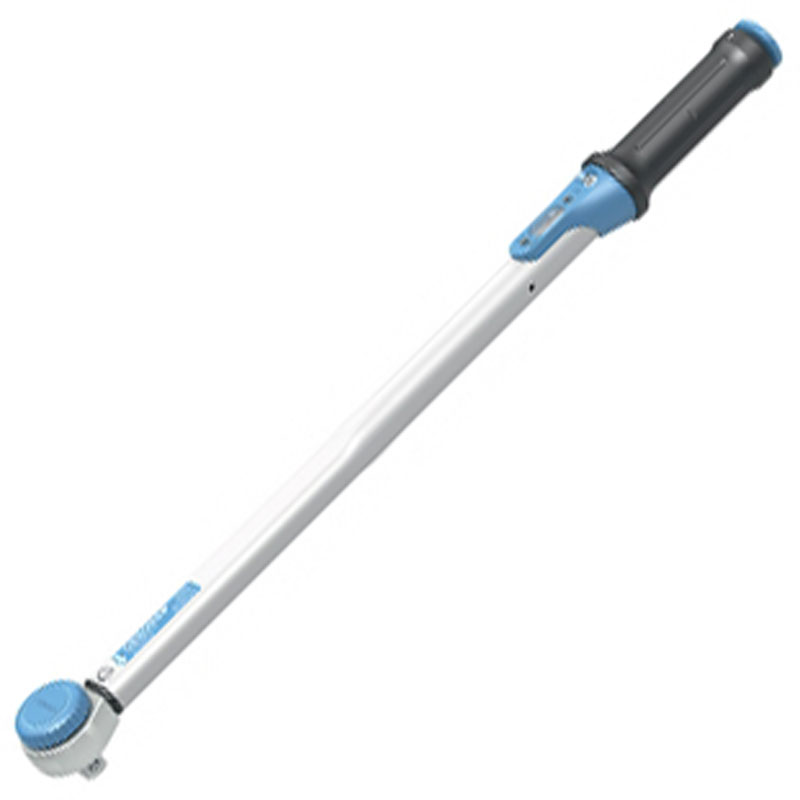

GEDORE 4550 TORQUE WRENCH TORCOFIX K 80 – 400 NM
For use in almost all industrial manufacturing areas. For controlled nut and bolt tightening. Features: Adjustable torque wrench with a square drive and integrated ratchet head function. For controlled bi-directional tightening. Interchangeable mushroom head square drive with a ball-locking mechanism as per DIN 3120. In accordance with DIN EN ISO 6789, traceable to national norms. Actuation accuracy: +/- 3% tolerance of the scale set to torque. Lever breaking mechanism with a castor guarantees tactile impulse and audible actuation signals. Double scale Nm and lbf.ft behind the window with a magnifying effect. Black plastic handgrip with a slip-resistant ribbed surface. Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts. Additional micrometer scale with an Nm graduation of 0.1, 0.25, 0.5, or 1Nm. Supplied with a calibration certificate. Unique serial number for traceability.
Description
Technical Specifications
Operating Torque: 80–400 NM
Drive Size: 3/4″ IN
Accuracy: ±4%
Measurements: NM and LBF FT
Ratchet Teeth Count: None
Length With Handle: 685 MM
Length Without Handle: 550 MM
Handle Material: Top Grade Plastic
Certification: Yes (GED 8272)










Reviews
There are no reviews yet.
