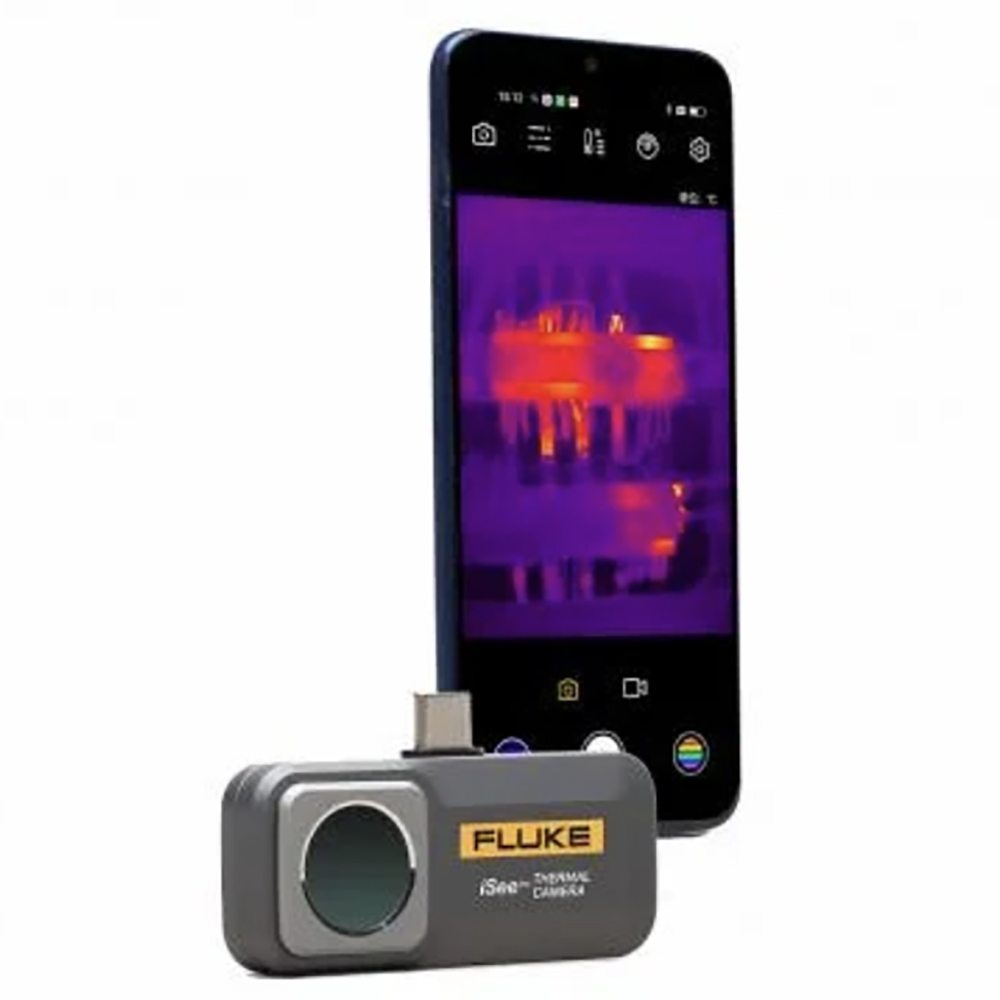

Fluke TC01A 9Hz + Pouch
The Fluke iSee™ Mobile Thermal Camera delivers fast, on-the-go inspections with pro-grade image quality in a compact 22g design. With a 256 x 192 resolution, 25 Hz video, and a wide temperature range up to 550°C, it’s perfect for diagnosing HVAC issues, checking electrical panels or installing underfloor heating. Quick to start and easy to use, it also includes detailed temperature analysis tools for accurate, reliable results.
Description
Technical Specifications
Feature
TC01A
TC01B
IR Resolution: 256 × 192: 256 × 192
Pixel Size: 12 μm: 12 μm
Temperature Range: -10 °C to 550 °C (14 °F to 1022 °F): -20 °C to 550 °C (-4 °F to 1022 °F)
Accuracy: ±2% of reading or ±2 °C (3.6 °F), whichever is greater (at 23 °C ±5 °C)
Measurement Distance: 0.25 m to 5 m (*–20 °C to 10 °C valid from 0.25 m to 3 m)
Frame Rate: 9 Hz or 25 Hz models: 25 Hz
Warm-up Time: 1 minute
Focal Length: Fixed, 3.2 mm
Shutter Mode: Internal
Thermal Sensitivity (NETD): 50 mK (0.05 °C)
Spectral Range: 8 to 14 μm
Field of View (H × V): 56° × 42°
Spatial Resolution: 3.81 mrad
USB Interface: Type-C: Lightning
Operating Temperature: Up to 40 °C
Storage Temperature: -30 °C to 60 °C
Operating Humidity: 10% to 90% RH, non-condensing
Power Consumption: 350 mW (typical): 200 mW (typical)
Drop Test: 1 m
Ingress Protection: IP54 (with protective cover): IP56
Operating Altitude: 2000 m
Storage Altitude: 12,000 m
Dimensions (L × W × H): 60 × 33.5 × 11.2 mm
EMC Standards: IEC 61326-1: Portable Electromagnetic Environment
CISPR 11: Group 1, Class A
Regulatory Compliance: FCC 47 CFR 15 Subpart B (exempt under clause 15.103)
Korea KCC: Class A (Industrial Equipment)
Key Features
High-resolution 256 × 192 thermal imaging for detailed inspections
9Hz (TC01A) or 25Hz (TC01B) frame rate options for smooth real-time imaging
Wide temperature measurement range up to 550 °C
Exceptional thermal sensitivity of 50 mK (0.05 °C)
Plug-and-play connection via Type-C (TC01A) or Lightning (TC01B)
More than 10 customisable colour palettes
Spot, line and area temperature analysis tools
Real-time image and video sharing capability
Compact, lightweight (22g) and durable design
Applications
Electrical inspections – identifying overheating connections and components
HVAC diagnostics – detecting airflow issues and system inefficiencies
Building maintenance – insulation checks and moisture detection
Industrial preventative maintenance – monitoring motors and machinery
Product R&D and quality control testing
Learn More About Using a Multimeter
Improve your diagnostic skills with our step-by-step guide to accurate electrical testing.
Click here to read: How to Use a Multimeter
Frequently Asked Questions
What is the difference between the TC01A and TC01B?
The TC01A connects via USB Type-C and operates at 9Hz, while the TC01B connects via Lightning and operates at 25Hz. The TC01B also offers a slightly wider minimum temperature range.
What temperature range can the Fluke iSee measure?
The TC01A measures from -10 °C to 550 °C, while the TC01B measures from -20 °C to 550 °C, making both suitable for a wide range of inspection tasks.
Can this thermal camera be used for electrical inspections?
Yes. It is ideal for identifying overheating connections, loose terminals and overloaded circuits during electrical inspections.
Does it require batteries?
No. The Fluke iSee thermal camera draws power directly from the connected smartphone.
Is this product covered by warranty?
Yes. This product is covered according to our warranty policy. For full details, please visit:
