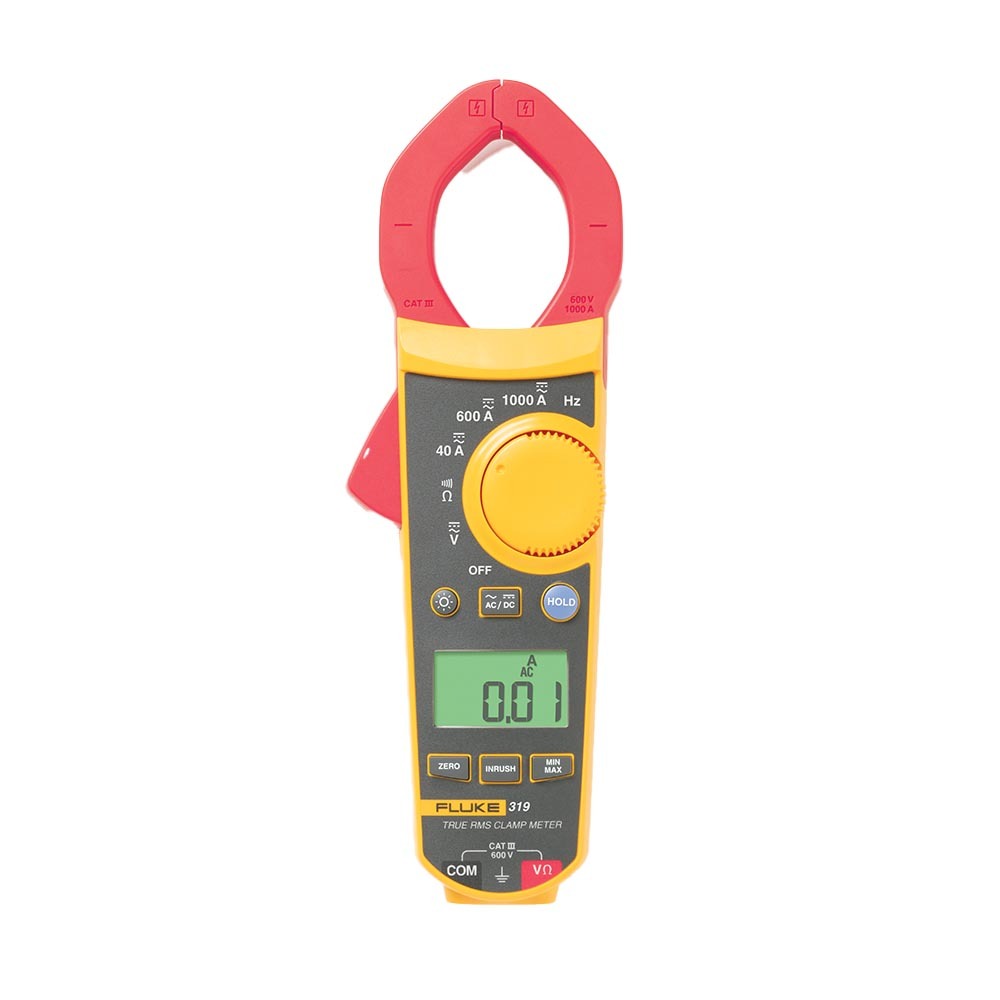

Fluke 319 600 Amp True RMS AC/DC Clamp Meter

Description

Technical Specifications
FeatureFluke 319 Specification
Display: 6000 Count Digital Display with Backlight
Power Source: 3 x AAA IEC LR03 Batteries
Clamp Opening: 37 mm (1.45 in)
Maximum AC Current: 1000 A
Maximum DC Current: 1000 A
AC Current Ranges: 40.00 A / 600.0 A / 1000 A
DC Current Ranges: 40.00 A / 600.0 A / 1000 A
Low Current Resolution: 0.01 A (40 A range)
Maximum AC/DC Voltage: 600.0 V
Voltage Resolution: 0.1 V
Resistance Range: 400.0 Ω / 4000 Ω
Resistance Resolution: 0.1 Ω / 1 Ω
Continuity: ≤ 30 Ω (Beeper)
Frequency Range: 5.0 – 500.0 Hz
Inrush Current: Yes (100 ms Integration Time)
Safety Category: CAT III 600V
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +60 °C
IP Rating: IP40
Dimensions (L x W x H): 162.4 x 58.25 x 30.5 mm
Weight: Approximately 384 g (Batteries Included)
Warranty: 1 Year
Key Features
1000A AC/DC current measurement capability
High-precision 40A range with 0.01A resolution
True RMS AC voltage and current measurements
Inrush current measurement for motor and lighting start-up testing
Frequency measurement from 5 Hz to 500 Hz
600V AC/DC voltage measurement
4000 Ω resistance measurement
Continuity beeper
Large backlit display for dark environments
Auto power-off and HOLD function
Slim clamp design ideal for confined cable compartments
Product Description
The Fluke 319 Clamp Meter is a compact, rugged and ergonomically designed True RMS clamp meter built for professional electricians and industrial technicians. With the ability to measure up to 1000A AC/DC, it is ideal for high-current industrial applications.
The unique 40A low-current range provides high precision with 0.01A resolution, making it suitable for detailed diagnostics on low-load circuits. The 319 model also includes inrush current measurement with 100 ms integration time, allowing accurate testing of motor start-up currents and lighting systems.
Additional functionality includes 600V AC/DC voltage measurement, resistance up to 4000 Ω, continuity testing and frequency measurement from 5 Hz to 500 Hz. The large 6000-count backlit display ensures clear readings even in low-light environments.
Designed to withstand demanding field conditions, the Fluke 319 features a durable IP40-rated housing, CAT III 600V safety rating and operates between -10 °C and +50 °C.
Supplied With
Fluke 319 Clamp Meter
Test Leads
Soft Carrying Case
Three AAA Batteries (Installed)
User Manual
Frequently Asked Questions
What is the maximum current the Fluke 319 can measure?
The Fluke 319 measures up to 1000A AC and DC current.
Does the Fluke 319 measure inrush current?
Yes. The 319 model includes inrush current measurement with a 100 ms integration time, ideal for motor and lighting start-up testing.
Can it measure frequency?
Yes. The Fluke 319 measures frequency from 5 Hz to 500 Hz.
Is it suitable for industrial use?
Yes. With a CAT III 600V safety rating and rugged construction, it is designed for professional industrial applications.
Does it have a backlit display?
Yes. The 6000-count digital display includes a backlight for working in low-light environments.
