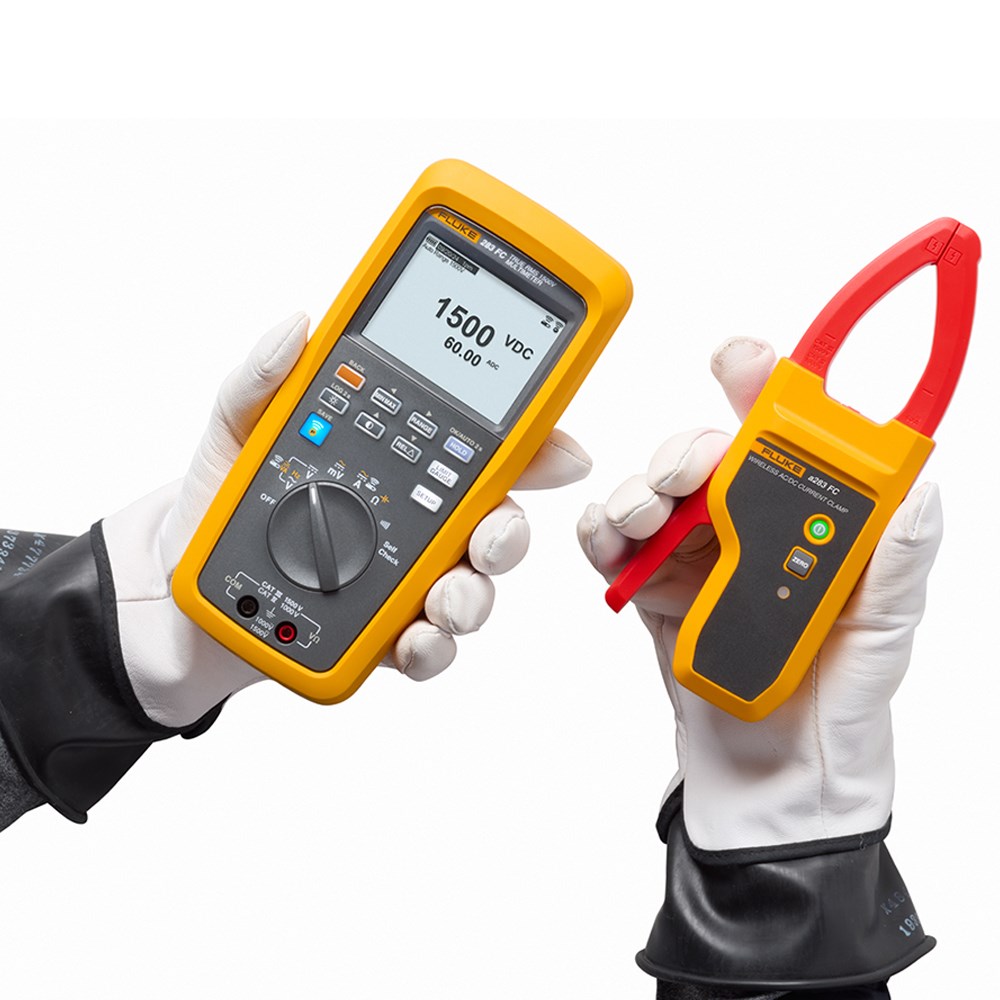

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

Description

Technical Specifications
FunctionRangeResolutionAccuracy
AC Volts (45 Hz – 1 kHz): 6.000 V: 0.001 V: 1.0 % + 3 (45 Hz – 500 Hz)
2.0 % + 3 (500 Hz – 1 kHz)
60.00 V: 0.01 V:
600.0 V: 0.1 V:
1000 V: 1 V:
DC Volts: 6.000 V: 0.001 V: 0.09 % + 3
60.00 V: 0.01 V:
600.0 V: 0.1 V:
1500 V: 1 V: 0.15 % + 2
AC mV (45 Hz – 1 kHz): 600.0 mV: 0.1 mV: 1.0 % + 3 (45 Hz – 500 Hz)
2.0 % + 3 (500 Hz – 1000 Hz)
DC mV: 600.0 mV: 0.1 mV: 0.09 % + 2
Continuity: 600 Ω: 1 Ω: —
Resistance: 600.0 Ω: 0.1 Ω: 0.5 % + 4
6.000 kΩ: 0.001 kΩ:
60.00 kΩ: 0.01 kΩ:
600.0 kΩ: 0.1 kΩ:
6.000 MΩ: 0.001 MΩ:
50.00 MΩ: 0.01 MΩ: 1.5 % + 4
Capacitance: 1000 nF: 1 nF: 1.2 % + 2
10.00 μF: 0.01 μF:
100.0 μF: 0.1 μF:
9999 μF: 1 μF: 10 % typical
Frequency: 99.99 Hz: 0.01 Hz: 0.1 % + 2
999.9 Hz: 0.1 Hz:
9.999 kHz: 0.001 kHz:
99.99 kHz: 0.01 kHz:
AC VA (45 Hz – 500 Hz): 360.0 VA: 0.1 VA: 2 % + 1.0 VA
3.600 kVA: 0.001 kVA: 2 % + 0.01 kVA
36.00 kVA: 0.01 kVA: 2 % + 0.1 kVA
60.00 kVA: 0.01 kVA: 2 % + 0.15 kVA
DC VA: 360.0 VA: 0.1 VA: 2 % + 1.0 VA
3.600 kVA: 0.001 kVA: 2 % + 0.01 kVA
36.00 kVA: 0.01 kVA: 2 % + 0.1 kVA
90.00 kVA: 0.01 kVA: 2 % + 0.25 kVA
Min / Max / Avg:
DC functions: specified accuracy ± 12 counts for changes longer than 350 ms.
AC functions: specified accuracy ± 40 counts for changes longer than 900 ms.
Environmental Specifications
Operating Temperature: -10 °C to 60 °C
Storage Temperature: -30 °C to +70 °C
Humidity (non-condensing):
0–90 % (10 °C to 30 °C)
0–75 % (30 °C to 40 °C)
0–45 % (40 °C to 60 °C)
Warranty & Protection
EMC: IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
Overvoltage Category: CAT III 1500 V, CAT IV 1000 V
Agency Approvals: ETL (AMER & EMEA), CSA (APAC), CE, UK CA
Drop Test: 2 m (6.5 ft)
Ingress Protection: IP52
Warranty: Limited Lifetime
Mechanical & General Specifications
Counts: 6000
Size: 22.5 cm x 10.5 cm x 5.7 cm (8.8 in x 4.1 in x 2.2 in)
Weight: 0.7 kg (1.5 lb)
Battery Life:
> 150 hours typical (3 x AA alkaline, without backlight)
> 100 hours typical when connected to wireless current clamp
Key Features
Measure safely with CAT III 1500 V / CAT IV 1000 V safety-rated multimeter
Includes TL175-HV CAT III 1500 V / CAT IV 1000 V premium test leads
User-defined limit gauge for quick go/no-go decisions
Unique multimeter readiness self-check
Visual and audio polarity indicators with on/off function to prevent wiring issues
Additional Features
Highly accurate voltage measurements for precise frontline troubleshooting
Current measurements up to 60 A AC/DC when used with optional a283 FC wireless current clamp
Visual and audio polarity indicators help prevent accidental wiring issues
User-defined limit gauge enables quick troubleshooting decisions
Multimeter readiness self-check ensures the meter is ready before testing
Save and log measurements to internal memory and view on mobile device via Fluke Connect™
How to Use a Multimeter
Learn how to safely and correctly measure voltage, resistance, and continuity with a multimeter. This guide explains practical testing methods and troubleshooting tips.
Click here to read: How to Use a Multimeter
Frequently Asked Questions
Can this multimeter measure up to 1500 V DC safely?
Yes. This multimeter is rated CAT III 1500 V and CAT IV 1000 V, making it suitable for high-voltage industrial and solar PV applications when used correctly with the supplied safety-rated test leads.
Can it measure current?
Yes. It can measure up to 60 A AC/DC when used with the optional a283 FC wireless current clamp.
Is it suitable for solar PV installations?
Yes. With 1500 V DC capability and CAT III / CAT IV safety ratings, it is ideal for testing solar strings, inverters, and high-voltage DC systems.
Does it store measurements?
Yes. Measurements can be saved to internal memory and viewed on a mobile device via Fluke Connect™.
