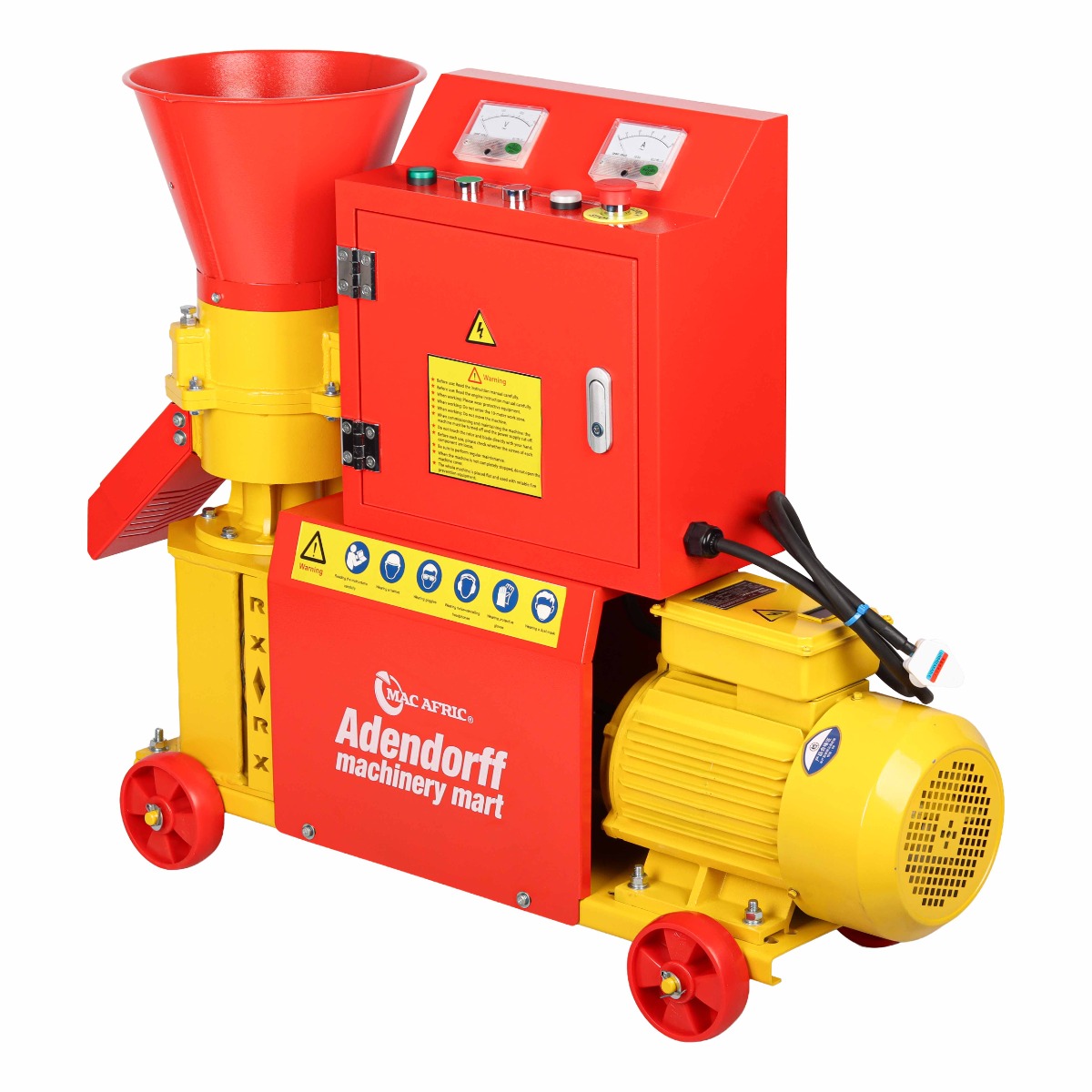

FEED PALLET MACHINE

Description

Technical Specifications

Model: MCRUSH006
Brand: MAC AFRIC
Rated Voltage: 220–240 V AC
Phase: Single-Phase
Rated Frequency: 50 Hz
Rated Power: 4 kW
Rated Current: 23.6 A
Motor Insulation Class: Class F
IP Rating: IP44
Plug Type: BS546
Supply Cable Length: 1.5 m
Motor Speed: 1,400 r/min
Die Speed: 320 r/min
Supplied Die Size: 4 mm
Die Thickness: 22 mm
Roller Diameter: 64 mm
Output Rate: 80–200 kg/h
Hopper Capacity: 10 L
Gearbox Oil Grade: Hyperbolic Heavy-Duty Gear Oil: SAE 75W-90 or SAE 80W-90, API GL-5
Gearbox Oil Capacity: 4 L
Net Mass: 110.5 kg
Gross Packed Mass: 131 kg
Operating Ambient Temperature: −15 °C to 40 °C
Sound Pressure Level (LpA): 85.5 dB(A)
Sound Power Level (LwA): 98.5 dB(A)
Wheels: 4 × Nylon Wheels
Wheel Load Rating: 80 kg per Wheel
Key Features
4 kW single-phase electric motor.
Produces 80–200 kg/h output.
Supplied with a 4 mm die.
Compatible with 3 mm, 5 mm and 6 mm optional dies.
10 L hopper capacity.
Die speed of 320 r/min.
Motor speed of 1,400 r/min.
IP44 rated motor with Class F insulation.
Gearbox requires SAE 75W-90 or SAE 80W-90 API GL-5 gear oil.
4 L gearbox oil capacity.
Mounted on four nylon wheels for mobility.
