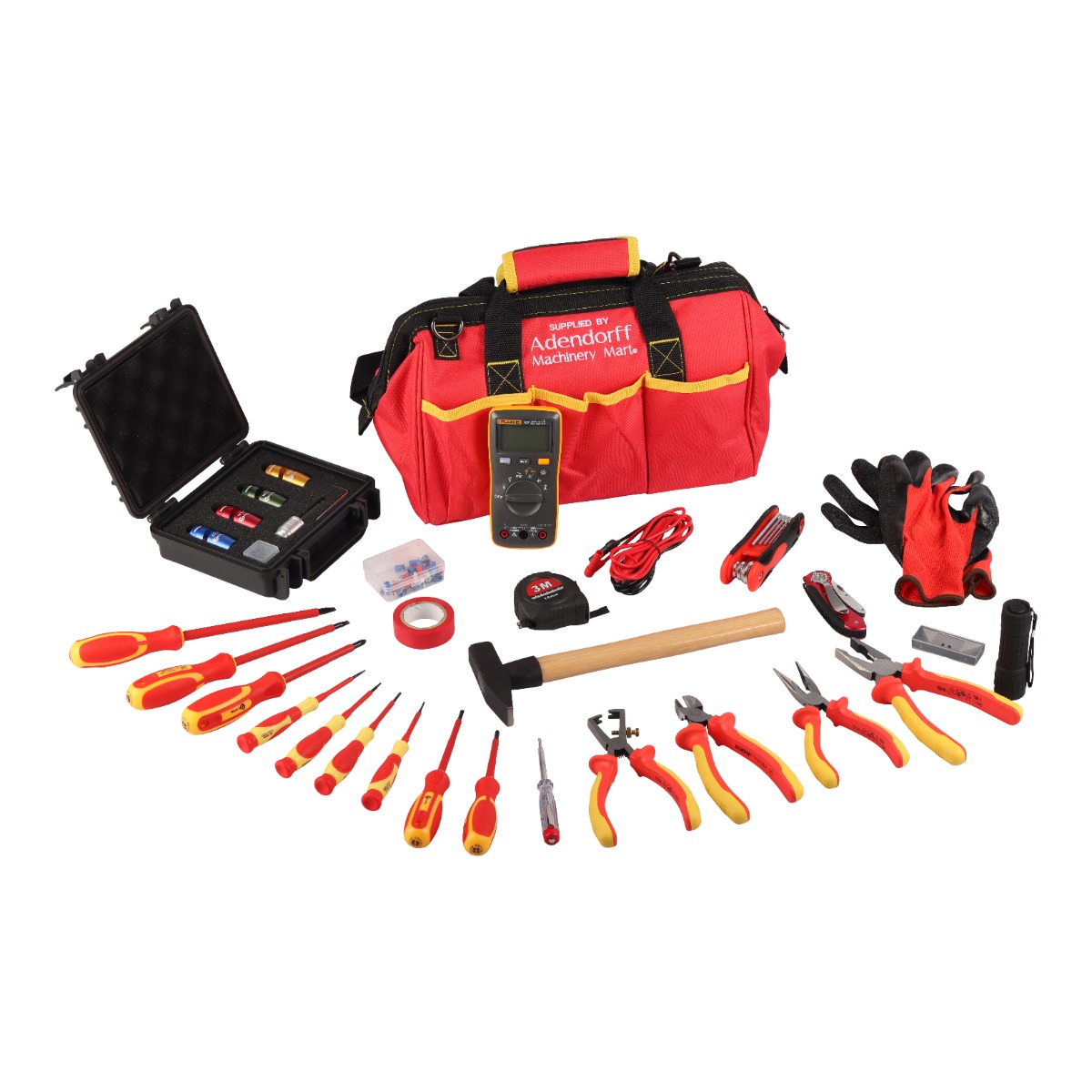

ELECTRICAL (TSTRIP008, TTOOLB042 & TTESDM107)

Description

Technical Specifications

Wire Stripper – MAC AFRIC Adjustable Wire Stripping Drill Bit Kit (TSTRIP008)
Compatibility: AC electrical single-core BV wires
Max Stripping Diameters: BV2.5, BV4.0, BV6.0, BV10.0
Drill Shaft Size: 6.35 mm
Peeling Length: Adjustable from 10 – 33 mm
Material: Aluminum Alloy Body with Tungsten Steel Blade
Storage: Plastic Carry Case
Safety: Non-exposed blade for user safety
Tool Bag – MAC AFRIC 42-Piece Electrician’s Tool Bag (TTOOLB042)
Lockable: Yes (Lock Sold Separately)
Handle Type: Velcro Carry Handle
Quantity of Tools: 42
Tool Holding: Pockets
Amount of Compartments: 14
Specifications Description:
What Is Included:
1 × Measuring Tape 3 m
1 × Gloves
1 × Hex Set: 1.5, 2, 2.5, 3, 4, 5, 6, 8 mm
16 × Terminals
Multimeter – MAC AFRIC Digital Multimeter CAT III 600V (TTESDM107)
AC Voltage: 6.000 V / 60.00 V / 600.0 V ±1.0 % + 3
DC Voltage: 6.000 V / 60.00 V / 600.0 V ±0.5 % + 3
AC Millivolts: 600.0 mV ±3.0 % + 3
Diode Test: 2.000 V ±10 %
Resistance: 400.0 Ω to 40.00 MΩ ±0.5 % + 2 to ±1.5 % + 3
Capacitance: 50.00 nF to 1000 μF ±2 % + 5 to ±5 % + 5
Frequency: 50.00 Hz to 100.0 kHz ±0.1 % + 3
Duty Cycle: 1% to 99% (typical)
AC/DC Current: 4.000 A / 10.00 A ±1.5 % + 3
Overload Protection: 600 V (AC/DC), 600 mV (AC mV)
Input Impedance: >10 MΩ
Max Voltage to Earth: 600 V
Display: 6000 counts, updates 3/sec
Battery: 2 × AAA (NEDA 24A / IEC LR03)
Battery Life: 200 hours min.
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -30 °C to 60 °C
Humidity: ≤90% (10–30°C), ≤75% (30–40°C)
Altitude: Operating: 2000 m / Storage: 12,000 m
Fuse: 11A, 1000V Fast Fuse (Fluke Specified)
Size: 142 mm × 69 mm × 28 mm
Weight: 200 g
IP Rating: IP40 (IEC 60529)
Safety: IEC 61010-1, 600 V CAT III, Pollution Degree 2
EMC: IEC 61326-1 (Portable Equipment)
Key Features
CAT III 600 V safety rating
Measures current, voltage, resistance, continuity, and capacitance
Includes data hold and backlit display for safe, efficient testing
