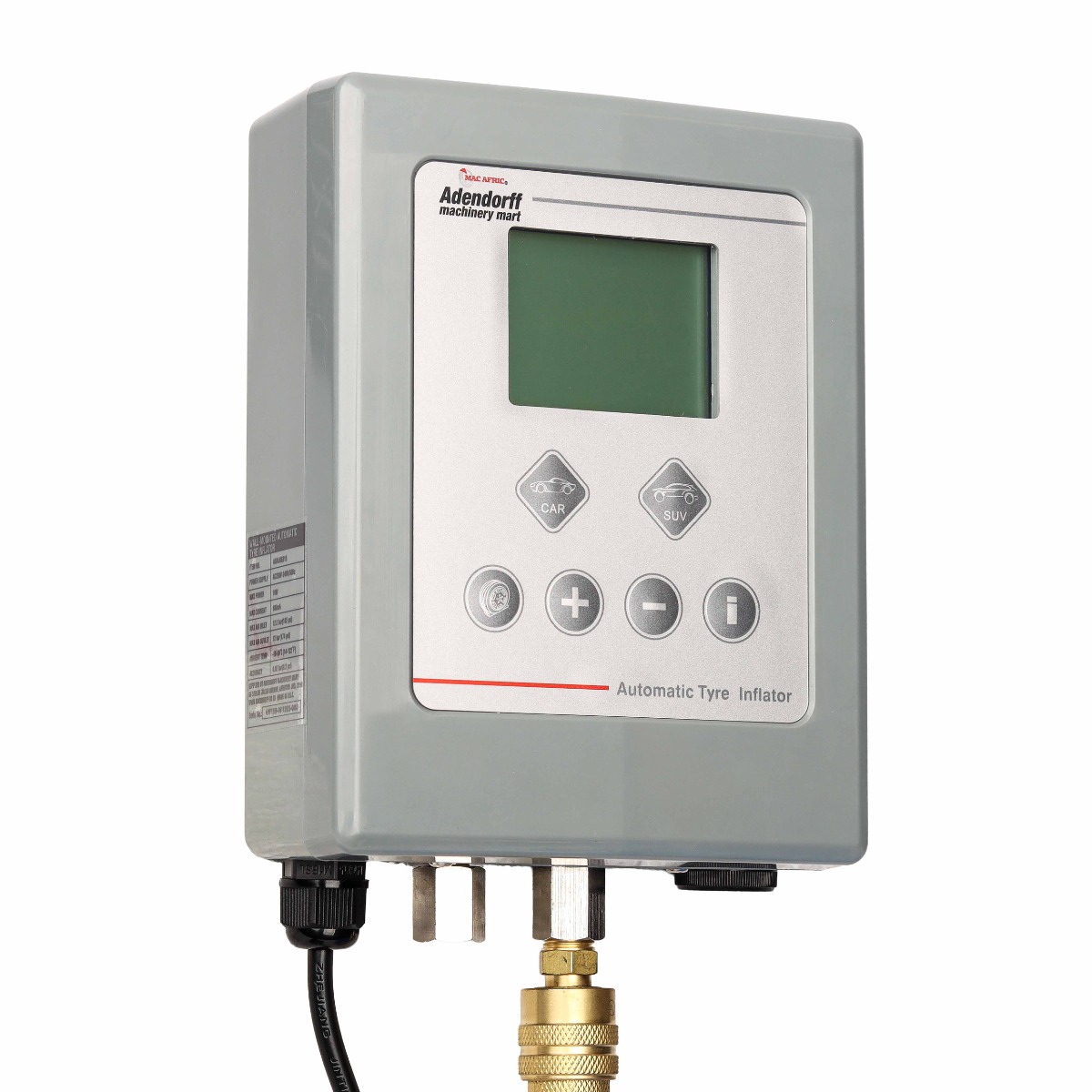

AUTOMATIC TIRE INFLATOR W91

Description

Technical Specifications
Feature
Specification
Pressure Range: 0.5–12 bar
Accuracy: ±0.02 bar
Maximum Inlet Air Pressure: 12.5 bar
Power Supply: 230 V AC, 60 Hz
Maximum Power Consumption: 10 W
Operating Temperature: -10 °C to +50 °C
Relative Humidity: Up to 95% RH, non-condensing
Air Hose Length: 9 m
Inlet Connection: Male 1/8 BSPT; Female 1/4 BSP
Outlet Connection: LAM-02PM – Male 1/4 ZG
Mounting Dimensions: M4.8 × 38
Unit Dimensions: 19 × 15 × 6.5 cm
Unit Mass: 1.3 kg
Ingress Protection Rating: IP43
Electrical Protection Class: IP43
