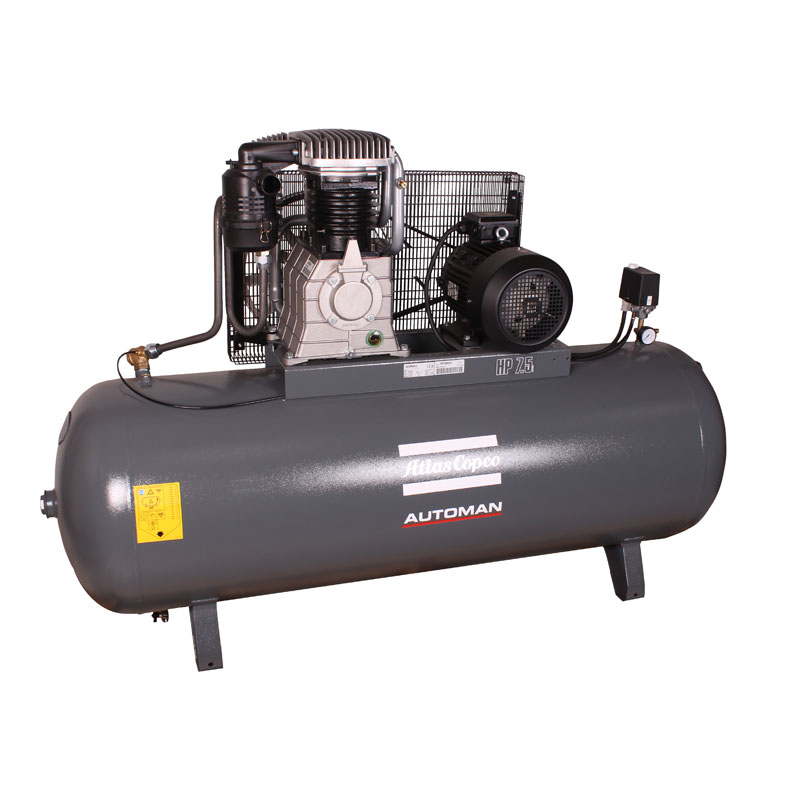

AUTOMAN AC 100 E 500L Stationary Air Compressor 7.5 KW (10 HP) 380 V
AC series oil-lubricated compressors are designed with a slow-running compressor block for exceptionally long service life. Cast iron cylinders with low-speed pistons have traditionally been recognized for their durability.
Description
Technical Specifications
Tank Capacity: 500 L / -10° to 120° C
Motor Output: 7.5 KW (10 HP)
Outlet Air Flow: 35.4 CFM (1 002 L/MIN)
Max Tank Pressure: 11 BAR (160 PSI)
Amperage: 14.5 A
Compressor Type: Belt Driven
RPM: 2 900 RPM
Voltage: 380 V @ 50 HZ
Expert Advice
Drain your compressor tank daily after use to avoid build-up and contamination. Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
