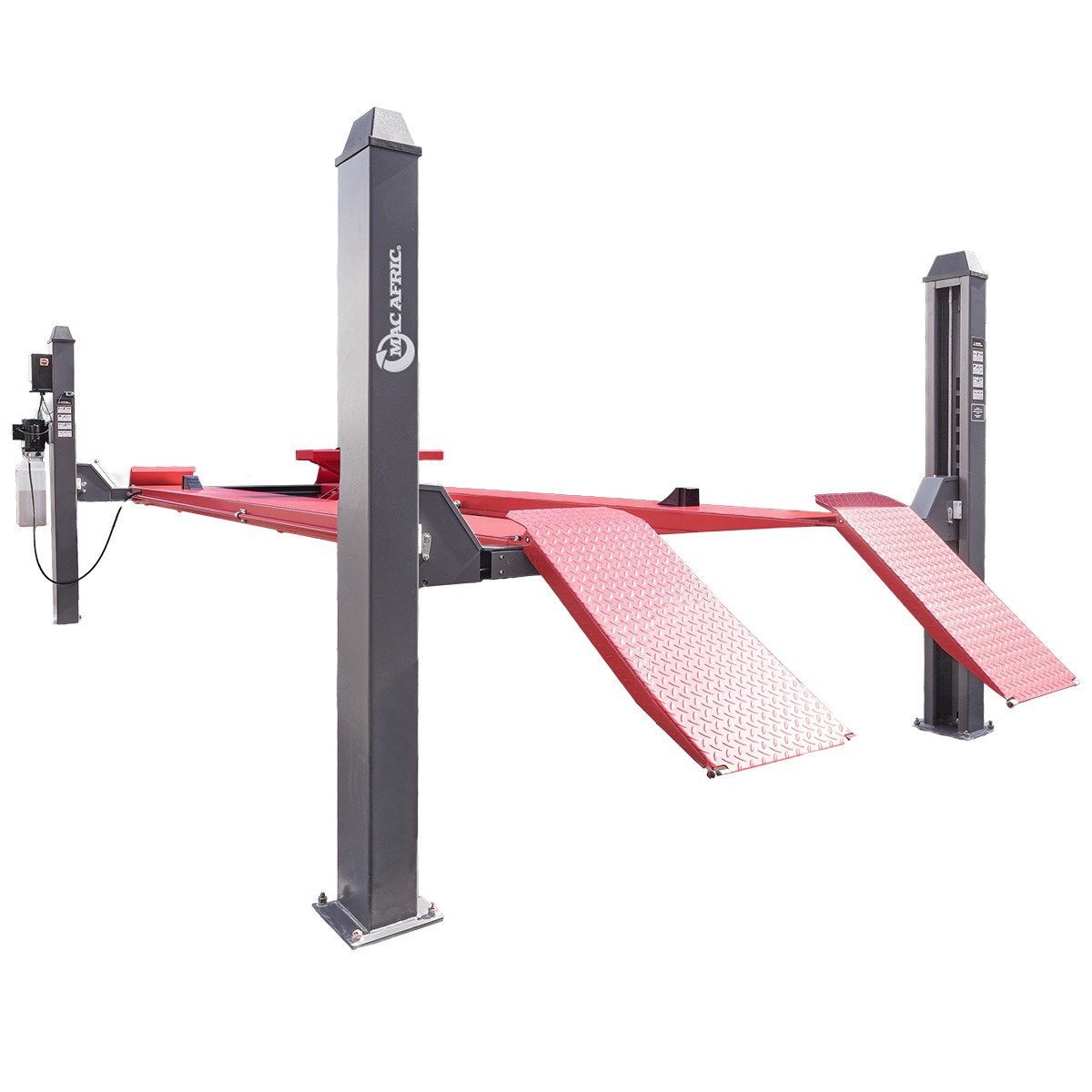

5TON FOUR POST LIFT

Description

Technical Specifications

Model: GLIFTS004
Lift Type: Four Post Platform Lift
Lifting Capacity: 5 Ton
Lifting / Lowering Time:
Lifting Height: 1750 mm
Total Height: 2205 mm
Total Width: 3480.5 mm
Total Length: 5494 mm
Optional Rolling Jack Capacity: 2500 kg
Rolling Jack Lifting Time:
Rolling Jack Lifting Height: 488 mm
Rolling Jack Width: 430 mm
Rolling Jack Length: 1130 mm
Key Features
Heavy-duty 5-ton four-post platform lift designed for vehicle servicing and workshop use.
Stable four-column design ensures safe lifting of cars, bakkies, and light commercial vehicles.
Fast lifting and lowering cycle of under 75 seconds for improved workshop productivity.
Large platform size accommodates a wide range of vehicle wheelbases.
Optional 2.5-ton rolling jack allows easy wheel and suspension work.
Integrated ramps for smooth vehicle loading onto the platform.
Heavy-duty steel construction designed for durability in busy workshops.
Safety lock system and steel cable mechanism for stable lifting and lowering.
Main Structural Components
Main column
Auxiliary column
Control box
Power unit
Column cap
Ramp
Main crossbeam
Auxiliary crossbeam
Main platform
Auxiliary platform
Rolling jack (optional)
Wheel stop plate
Safety Features
Steel cable lifting system for reliable and balanced lifting.
Rope break protection mechanism to enhance operational safety.
Mechanical safety locks with lock teeth for secure vehicle support.
Main safety locking system integrated into the column.
Manual unlock handle for controlled lowering.
Troubleshooting Guide
Abnormal noise: Check for cylinder friction marks or internal obstructions and apply lubricating oil if necessary.
Motor does not turn and lift does not rise: Inspect wiring connections, check for bad contacts, and verify the limit switch connection.
Motor runs but lift does not rise: Inspect motor rotation direction, hydraulic oil level, gear pump condition, and suction pipe tightness.
Slow unloading after lifting: Check oil cylinder seals, overflow valve condition, and ensure the steel cable is properly adjusted.
Slow lifting: Ensure proper hydraulic oil levels, remove air from the system, and inspect cylinder lubrication.
Slow lowering: Inspect throttle valve and ensure hydraulic oil is clean and free of obstructions.
Rough cable edge: Replace steel cable if damage occurred due to lack of lubrication during installation.
5 Ton Four Post Platform Lift (GLIFTS004) – Operation Manual & Guide
Learn how to safely operate, maintain, and get the best performance from the 5 Ton Four Post Platform Lift (GLIFTS004). This guide covers setup, safety procedures, operating instructions, and important maintenance tips for workshop and automotive environments.
Click here to read: 5 Ton Four Post Platform Lift (GLIFTS004) – Operation Manual & Guide
