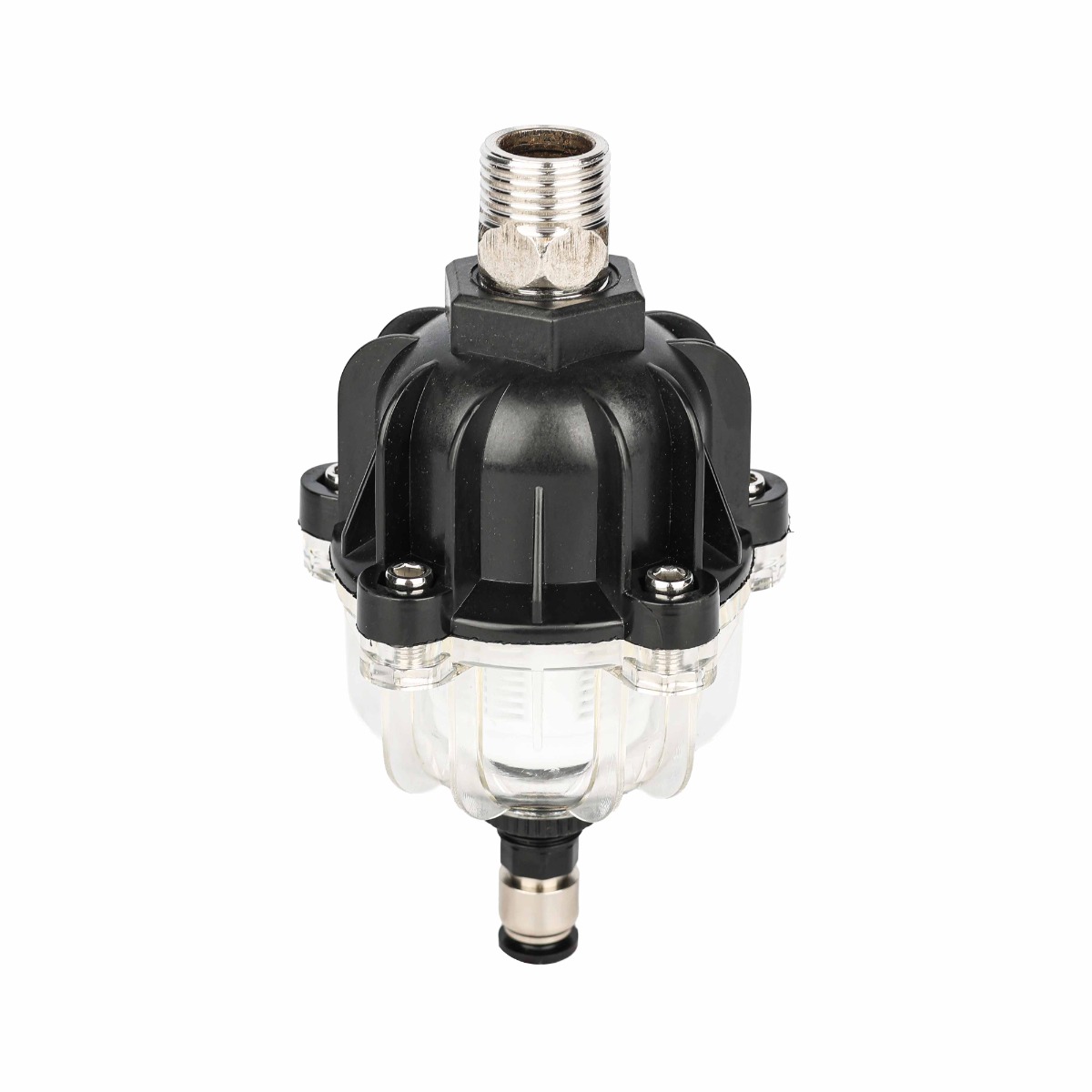

1/2″ Float Drain Valve
Keep your air system running efficiently with this 1/2″ Float Drain Valve. Designed to automatically remove accumulated condensate from air receivers, filters and other compressed air equipment, it helps prevent moisture build up and reduces maintenance requirements. Durable and reliable, it provides consistent automatic drainage for improved system performance and protection.
Description
Technical Specifications
Feature
Specification
Connection Size: 1/2″ BSP Female
Push-In Pipe Size: 5 mm
Maximum Working Pressure: 12 bar
Maximum Operating Temperature: 45 °C
Overall Width: 75 mm
Overall Height: 117 mm
Key Features
Polycarbonate bowl construction provides durability while allowing easy visual inspection.
Integrated automatic float drain removes accumulated condensate from compressed air systems.
Manual drain override function allows drainage by pressing the brass push-in fitting upwards.
Transparent design enables quick monitoring of drain operation and condensate levels.
Suitable for compressed air filter systems operating up to 12 bar.
Compact top-entry design with a 1/2″ BSP female connection.
Low-cost and effective solution for automatic condensate management in pneumatic systems.
